Vehicle Configuration Directory Selection Sub-Application Architecture

Overview

The Vehicle Configuration Directory Selection sub-application allows users to either create a new vehicle configuration project or open an existing one. It manages the selection and creation of vehicle directories, handles template selection, and downloads parameter documentation metadata corresponding to the flight controller firmware version to the project directory.

The architecture follows a clean layered design with dependency injection, where the frontend components depend on the VehicleProjectManager factory/container class, which provides a unified interface to all backend services. This ensures loose coupling and better testability.

Requirements

Functional Requirements

1. Directory Management
   • Must allow creation of new vehicle configuration directories
   • Must allow opening of existing vehicle configuration directories
   • Must provide re-open functionality for recently used directories
   • Must validate directory structure and required files
   • Must handle directory permissions and access rights
2. Template System
   • Must provide a comprehensive template overview interface
   • Must support multiple vehicle types (ArduCopter, ArduPlane, Rover, Heli, etc.)
   • Must allow template selection based on vehicle characteristics
   • Must copy template files to new vehicle directories
   • Must preserve template structure and file organization
3. Vehicle Template Selection
   • Must display available templates with descriptions
   • Must show template compatibility information
   • Must provide visual representation of template contents
   • Must allow filtering and searching of templates
   • Must support template comparison features
4. Parameter Documentation Management
   • Must download parameter documentation metadata for FC firmware version
   • Must store documentation files in the appropriate project directory
   • Must handle offline operation when documentation is already available
   • Must validate documentation file integrity
   • Must support multiple documentation formats
5. Project Configuration
   • Must initialize project configuration files
   • Must set up directory structure for parameter files
   • Must create necessary subdirectories and organize files
   • Must handle configuration file validation
   • Must support project metadata management

Non-Functional Requirements

1. Usability
   • Directory selection should be intuitive and user-friendly
   • Template overview should provide clear visual guidance
   • File operations should provide clear progress feedback
   • Error messages should be actionable and informative
2. Performance
   • Directory operations should complete quickly
   • Template copying should handle large file sets efficiently
   • Documentation download should not block the user interface
   • Memory usage should be optimized for large template collections
3. Reliability
   • Must handle incomplete or corrupted templates gracefully
   • Must verify successful completion of all file operations
   • Must provide rollback capability for failed operations
   • Must maintain project integrity during all operations
4. Compatibility
   • Must support different operating system path conventions
   • Must handle various file system limitations
   • Must work with different permission systems
   • Must support unicode file names and paths

Architecture

Architectural Pattern

The directory selection sub-application follows a Factory/Container Pattern with Dependency Injection:

• Frontend Layer: GUI components (VehicleProjectOpenerWindow, VehicleProjectCreatorWindow, DirectorySelectionWidgets)
• Facade Layer: VehicleProjectManager - provides unified interface to all backend services
• Backend Layer: Specialized services (LocalFilesystem, project creators, openers, etc.)

This architecture ensures:

• Separation of Concerns: Each layer has distinct responsibilities
• Dependency Inversion: Frontend depends on abstractions, not concrete implementations
• Testability: Easy to mock dependencies for unit testing
• Maintainability: Changes to backend services don’t affect frontend code

GUI Frontend Components

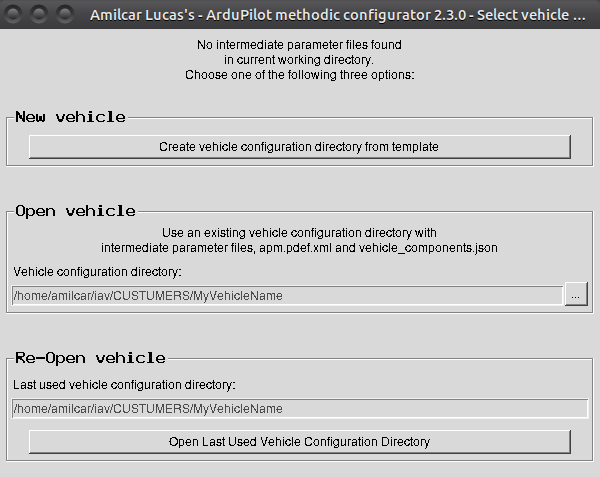

Project Opener Window

• File: frontend_tkinter_project_opener.py
• Purpose: Main interface for opening existing vehicle projects and launching new project creation
• Responsibilities:
  • Present three main options: Create New, Open Existing, Re-open Last Used
  • Handle user interactions and directory selection through callback patterns
  • Launch VehicleProjectCreatorWindow for new project creation
  • Delegate business logic to VehicleProjectManager
  • Manage UI state and user feedback for project opening operations
• Dependencies: Depends only on VehicleProjectManager interface

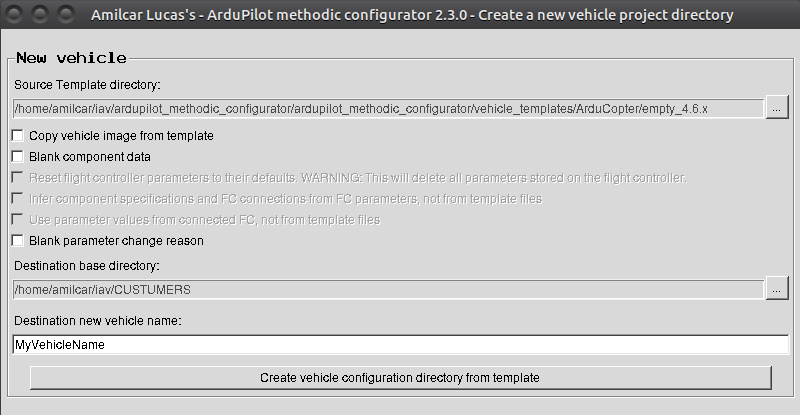

Project Creator Window

• File: frontend_tkinter_project_creator.py
• Purpose: Dedicated interface for creating new vehicle projects from templates
• Responsibilities:
  • Present template selection and project configuration options
  • Handle new project settings and customization dynamically based on flight controller connection state
  • Coordinate template selection through TemplateOverviewWindow
  • Delegate project creation to VehicleProjectManager
  • Provide feedback on creation progress and results
• Dependencies: Depends only on VehicleProjectManager interface

Template Overview Window

• File: frontend_tkinter_template_overview.py
• Purpose: Visual interface for template browsing and selection
• Responsibilities:
  • Display available vehicle templates
  • Show template details and compatibility information
  • Handle template selection and preview
  • Provide template comparison features
• Dependencies: Accesses templates through VehicleProjectManager interface

Directory Selection Widgets

• File: frontend_tkinter_directory_selection.py
• Purpose: Reusable directory and path selection widgets
• Responsibilities:
  • Provide common directory selection functionality through DirectorySelectionWidgets
  • Handle path entry and validation through PathEntryWidget
  • Support callback-based directory selection for flexible integration
  • Manage widget state and user interactions
• Dependencies: No direct VehicleProjectManager dependency; uses callback patterns

Business logic components

VehicleProjectManager (Facade/Factory)

• File: data_model_vehicle_project.py
• Purpose: Unified interface and factory for all vehicle project operations
• Responsibilities:
  • Coordinate between frontend and backend services
  • Provide high-level operations for project creation and opening
  • Manage project lifecycle and state transitions
  • Abstract backend complexity from frontend components
  • Implement factory pattern for creating project-related objects

Backend Components (accessed via VehicleProjectManager)

Project Creation Services

• File: data_model_vehicle_project_creator.py
• Purpose: Handle creation of new vehicle projects from templates
• Responsibilities:
  • Template copying and customization
  • Project directory initialization
  • Configuration file setup
  • Project metadata creation
• Access: Through VehicleProjectManager factory methods

Project Opening Services

• File: data_model_vehicle_project_opener.py
• Purpose: Handle opening and validation of existing vehicle projects
• Responsibilities:
  • Project directory validation
  • Configuration file loading
  • Project state reconstruction
  • Error handling for corrupted projects
• Access: Through VehicleProjectManager factory methods

Configuration Steps Backend

• File: backend_filesystem_configuration_steps.py
• Purpose: Manage configuration step definitions and documentation
• Responsibilities:
  • Load configuration step metadata
  • Validate configuration file structure
  • Handle configuration step documentation
  • Manage step sequencing and dependencies

Vehicle Components Backend

• File: backend_filesystem_vehicle_components.py
• Purpose: Handle vehicle component definitions and templates
• Responsibilities:
  • Load and validate vehicle component schemas
  • Manage component template libraries
  • Handle component compatibility checking
  • Support component customization

Data Flow

The data flow follows the layered architecture pattern with clear separation of concerns:

1. Application Initialization
   • VehicleProjectManager is instantiated with required backend services
   • VehicleProjectOpenerWindow receives VehicleProjectManager instance via dependency injection
   • Recent directories and templates are loaded through VehicleProjectManager
   • UI components are initialized with project manager reference
2. Project Selection Flow
   • User interacts with VehicleProjectOpenerWindow main interface
   • Three options presented: Create New, Open Existing, Re-open Last Used
   • For new projects: VehicleProjectOpenerWindow launches VehicleProjectCreatorWindow
   • For existing projects: callback functions handle directory selection through VehicleDirectorySelectionWidgets
3. New Project Creation Flow
   • VehicleProjectCreatorWindow instantiated with project_manager reference
   • Frontend presents template selection and project configuration options
   • User selects template through TemplateOverviewWindow integration
   • Frontend delegates to project_manager.create_new_vehicle_from_template()
   • VehicleProjectManager coordinates with project creator services
   • Project creation delegated to specialized creator services
   • Success/failure feedback provided through manager interface
4. Existing Project Opening Flow
   • User interacts with VehicleProjectOpenerWindow
   • Frontend presents project opening and re-opening options
   • User selects existing directory through DirectorySelectionWidgets with callbacks
   • Callback functions call project_manager.open_vehicle_directory() or project_manager.open_last_vehicle_directory()
   • VehicleProjectManager validates directory through opener services
   • Project state is reconstructed and validated
   • Error handling managed through consistent interface
5. Architecture Benefits
   • Frontend never directly accesses backend services
   • All business logic centralized in VehicleProjectManager
   • Easy to test with mock VehicleProjectManager
   • Changes to backend services don’t affect frontend code
   • Clean separation between project opening and project creation concerns

Integration Points

The directory selection sub-application integrates with other components through the VehicleProjectManager interface:

• Main Application (__main__.py): Creates VehicleProjectManager and launches VehicleProjectOpenerWindow
• Flight Controller Communication: VehicleProjectManager receives firmware information
• Component Editor: Receives project instance from VehicleProjectManager
• Parameter Editor: Gets configuration and documentation through VehicleProjectManager
• Template System: Accessed through VehicleProjectManager template methods
• File Operations: All file system access goes through VehicleProjectManager facade

Dependency Management

The architecture implements Dependency Inversion Principle:

Frontend (GUI) → VehicleProjectManager (Interface) → Backend Services

Dependencies Flow:

• Frontend depends on VehicleProjectManager interface (abstraction)
• VehicleProjectManager depends on backend service interfaces
• Backend services implement concrete functionality
• No direct dependencies between frontend and backend services

Benefits:

• Easy unit testing with mock VehicleProjectManager
• Backend services can be replaced without frontend changes
• Clear separation of concerns across layers
• Reduced coupling between components

Template Management

Template Structure

Templates are organized hierarchically by vehicle type:

vehicle_templates/
├── ArduCopter/
│   ├── X-Quadcopter/
│   ├── Y6-Hexacopter/
│   └── Traditional-Helicopter/
├── ArduPlane/
│   ├── Fixed-Wing/
│   └── VTOL/
└── Rover/
    ├── 4WD/
    └── Boat/

Template Content

Each template contains:

• Parameter files (*.param) for configuration steps
• Vehicle component configuration (vehicle_components.json)
• Configuration step definitions
• Documentation and readme files
• Default parameter values

Error Handling Strategy

• Directory Access Errors: Provide clear guidance for permission issues
• Template Corruption: Validate templates and provide recovery options
• Network Errors: Handle documentation download failures gracefully
• File System Errors: Provide detailed error information and recovery steps

Testing Strategy

The layered architecture enables comprehensive testing at each level:

Unit Testing

• VehicleProjectManager: Test facade methods with mocked backend services
• Frontend Components: Test with mocked VehicleProjectManager interface
• Backend Services: Test in isolation with mocked dependencies
• Integration Points: Test VehicleProjectManager coordination logic

Test Fixtures and Mocking

• mock_project_manager: Mock VehicleProjectManager for frontend tests
• mock_local_filesystem: Mock backend services for manager tests
• Dependency injection enables easy test isolation
• Clear interfaces make mocking straightforward

Test Coverage Areas

• Directory validation through VehicleProjectManager interface
• Template operations via manager facade methods
• Error handling across architecture layers
• UI interactions with mocked manager dependencies
• File system operations through abstracted interfaces

Architecture Testing Benefits

• Isolation: Each layer tested independently
• Maintainability: Tests don’t break when backend implementation changes
• Clarity: Test focus matches architectural responsibilities
• Reliability: Mock interfaces provide consistent test behavior

File Structure

# Frontend Layer (GUI)
frontend_tkinter_project_opener.py         # Main vehicle project selection interface
frontend_tkinter_project_creator.py        # Dedicated new project creation interface
frontend_tkinter_directory_selection.py    # Reusable directory selection widgets with callback support
frontend_tkinter_template_overview.py      # Template browsing and selection interface

# Facade/Factory Layer (Business Logic Coordination)
data_model_vehicle_project.py              # VehicleProjectManager facade/factory

# Backend Services Layer (Specialized Operations)
data_model_vehicle_project_creator.py      # New project creation services
data_model_vehicle_project_opener.py       # Existing project opening services
backend_filesystem.py                      # File system operations
backend_filesystem_configuration_steps.py  # Configuration step management
backend_filesystem_vehicle_components.py   # Vehicle component handling

# Test Layer
tests/test_frontend_tkinter_project_opener.py      # Project opener tests with mocked dependencies
tests/test_frontend_tkinter_project_creator.py     # Project creator tests with mocked dependencies
tests/test_frontend_tkinter_directory_selection.py # Directory widgets tests
tests/test_frontend_tkinter_template_overview.py   # Template overview tests

Dependencies

External Dependencies

• Python Standard Library:
  • os and pathlib for path operations
  • shutil for directory copying
  • json for configuration file handling
  • tkinter for GUI components
• Third-party Libraries:
  • jsonschema for configuration validation
  • PIL (Pillow) for image handling in templates

Internal Architecture Dependencies

• Frontend Layer Dependencies:
  • data_model_vehicle_project.VehicleProjectManager (facade interface)
  • frontend_tkinter_base_window for GUI base classes
  • frontend_tkinter_directory_selection for reusable widgets
  • frontend_tkinter_template_overview for template selection
  • frontend_tkinter_scroll_frame for scrollable interfaces
• VehicleProjectManager Dependencies:
  • backend_filesystem.LocalFilesystem for file operations
  • data_model_vehicle_project_creator for project creation
  • data_model_vehicle_project_opener for project opening
  • Data model classes for configuration management
• Backend Services Dependencies:
  • Standard library modules for specific operations
  • Configuration and schema validation libraries
  • File system and network access modules

Dependency Injection Pattern

The architecture implements dependency injection where:

• Frontend receives VehicleProjectManager instance via constructor
• VehicleProjectManager receives backend services via constructor
• No direct frontend-to-backend dependencies
• Easy to substitute mock objects for testing
• Clear separation of concerns across layers

Architectural Benefits

Design Patterns Implemented

1. Facade Pattern: VehicleProjectManager provides simplified interface to complex backend subsystems
2. Factory Pattern: VehicleProjectManager creates and manages project-related objects
3. Dependency Injection: Components receive dependencies via constructor parameters
4. Layer Architecture: Clear separation between frontend, facade, and backend layers

Code Quality Improvements

• Loose Coupling: Frontend components don’t depend on specific backend implementations
• High Cohesion: Each component has a single, well-defined responsibility
• Testability: Easy to unit test with mocked dependencies
• Maintainability: Changes to one layer don’t cascade to other layers
• Extensibility: New backend services can be added without frontend changes

Development Benefits

• Parallel Development: Frontend and backend teams can work independently
• Easier Debugging: Clear component boundaries make issue isolation simpler
• Better Testing: Each layer can be tested in isolation with appropriate mocks
• Code Reuse: VehicleProjectManager can be used by multiple frontend components
• Consistent Interface: All vehicle project operations go through unified interface

Template System Features

Template Categories

• Vehicle Type Based: Organized by ArduPilot vehicle type
• Size Categories: Small, medium, large vehicle templates
• Application Specific: Racing, photography, mapping, etc.
• Hardware Specific: Specific flight controller or component combinations

Template Validation

• Schema validation for all template configuration files
• Parameter file syntax checking
• Dependency verification between configuration steps
• Compatibility checking with different firmware versions

Template Customization

• User can modify templates after copying
• Support for local template libraries
• Template versioning and update mechanisms
• Template sharing and import/export functionality

Performance Optimization

• Lazy loading of template metadata
• Efficient directory scanning algorithms
• Parallel file operations where safe
• Caching of frequently accessed templates
• Progress reporting for long operations

This site is open source. Improve this page.
